Palletizing Robots: Industrial palletizing refers to loading and unloading parts, boxes or other items to or from pallets. Automated palletizing refers to an industrial robot palletizer performing the application automatically.

Robot palletizing can be seen in many industries including food processing, manufacturing, and shipping.

A robotic palletizer is able to handle heavy payloads and have large horizontal and vertical reaches that allow parts to be palletized from varying distances.

Robot Total:15products

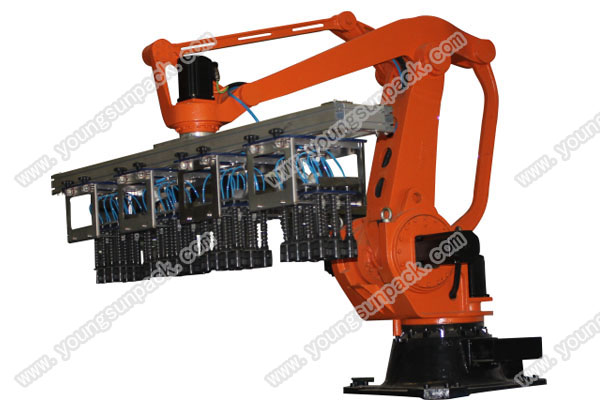

YSR-4-180-F
Series Multi-axls Robot paletizador
Model YSR-4-180-F

Fuente de alimentación

3x380V-3x500VAC士10% 50/60HZ 18.2KW

Cantidad?de ejes

4
Rated payload 180

Posición de instalación

Floor

Postura repetida

±0.5mm

Peso del robot

1400KG
Superficie del piso 900mm*900mm

Clasificación de protección del robot

IP 65
Nivel de sonido <75.0dB (A) outside the working envelope

Configuración eléctrica

B&R system,IntelX86 Processor Technology;Integrated separate I / O processor;Communication Interface:Ethernet TCP/IP、Ethernet POWERLINK、RS232、USB;Removable Storage CF card;CPU:ATOM E640 、1GHz、 256M SDRAM、200 us;
Inquiry this product

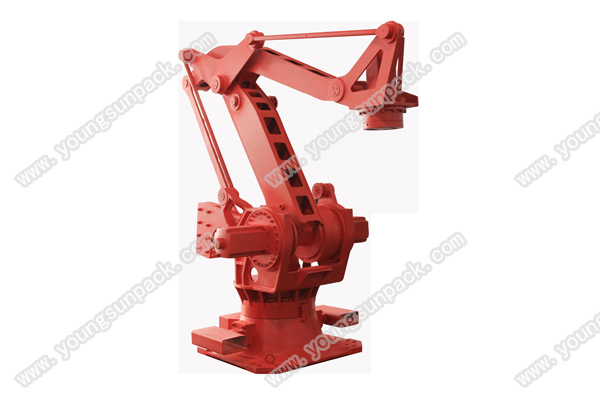

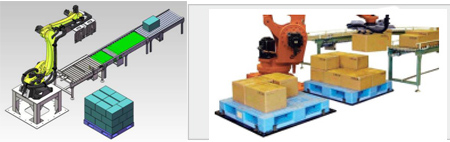

YSR-4-80-F
Series Multi-axls Robot paletizador
Model YSR-4-80-F

Carga determinada

80kg
Power supply 8.7KW
Reach 3150mm
Number of axes 4
Mounting position Floor
Weight of robot 1400KG
Pose repeatability ±0.5mm
Floor area 900*900mm
Axis data A1 ±180°
A2+90°至-40°
A3+15°至-115°
A4 ±360°
Max speed A1 120°/s
A2 135°/s
A3 135°/s
A4 300°/s
imges
Inquiry this product
s

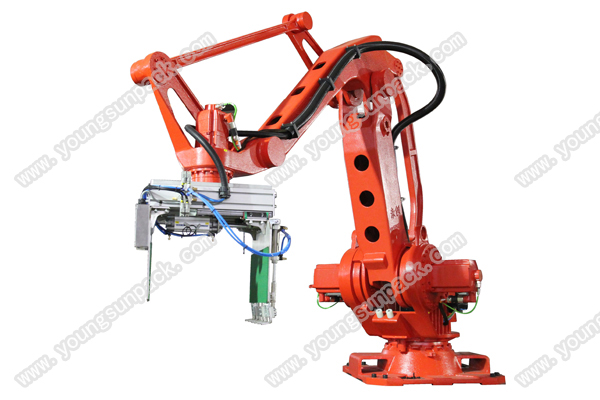

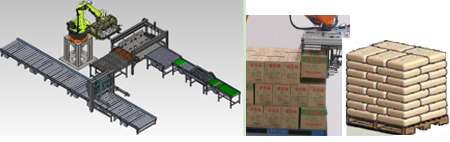

YSR-4-220-F
Series Multi-axls Robot paletizador
Model YSR-4-220-F
Rated payload 220kg
Power supply 15KW
Reach 3150mm
Number of axes 4
Mounting position Floor
Weight of robot 1600KG
Pose repeatability ±0.5mm
Floor area 900*900mm
Axis data A1 ±180°
A2+90°至-40°
A3+15°至-115°
A4 ±360°
Max speed A1 95°/s
A2 95°/s
A3 95°/s
A4 240°/s
imges
Inquiry this product

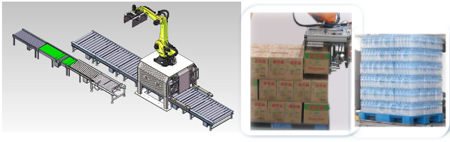

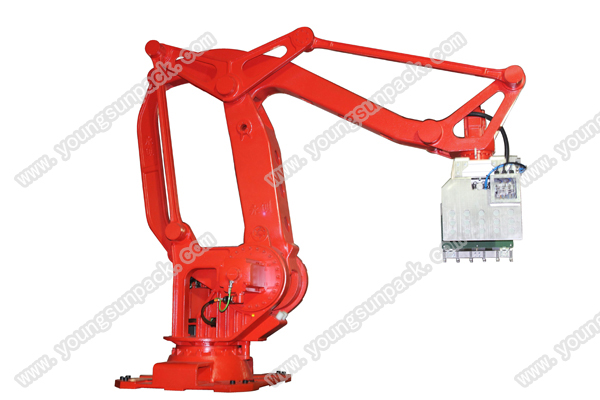

YSR-4-300-F
Series Multi-axls Robot paletizador
Model YSR-4-300-F
Rated payload 330kg
Power supply 16.6KW
Reach 3150mm
Number of axes 4
Mounting position Floor
Weight of robot 1700KG
Pose repeatability ±0.5mm
Floor area 900*900mm
Axis data A1 ±180°
A2+90°至-40°
A3+15°至-115°
A4 ±360°
Max speed A1 90°/s
A2 90°/s
A3 90°/s
A4 195°/s
imges
Inquiry this product

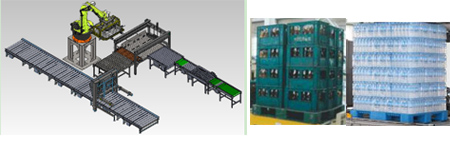

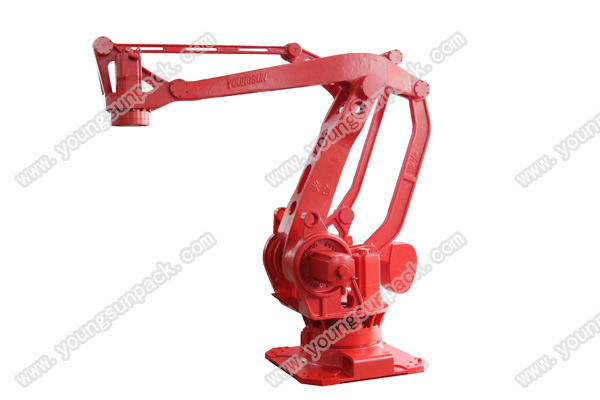

YSR-4-470-F
Series Multi-axls Industry Robot
Model YSR-4-470-F
Rated payload 470kg
Power supply 26.9KW
Reach 3150mm
Number of axes 4
Mounting position Floor
Weight of robot 2210KG
Pose repeatability ±0.5mm
Floor area 950*950mm
Axis data A1 ±180°
A2+90°至-40°
A3+15°至-115°
A4 ±360°
Max speed A1 85°/s
A2 80°/s
A3 80°/s
A4 165°/s
imges
Inquiry this product

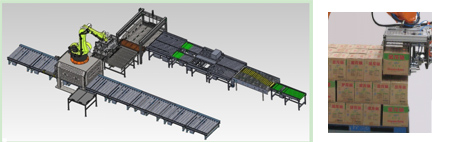

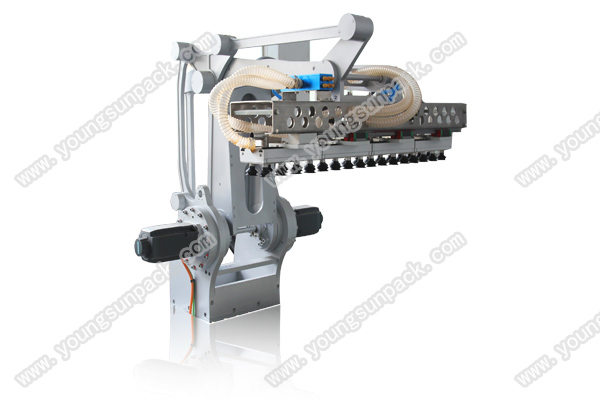

YSR-2-60-F
Series Multi-axls Industry Robot
Model YSR-2-60-F
Rated payload 20-60kg
Power supply 5.0KW
Reach ≤1800mm
Number of axes 2
Mounting position Floor
Weight of robot 200KG
Pose repeatability ±0.5mm
Floor area 700*700mm
Axis data A2+90°至-35°
A3+15°至-110°
Max speed A2 105°/s
A3 105°/s
imges
Inquiry this product

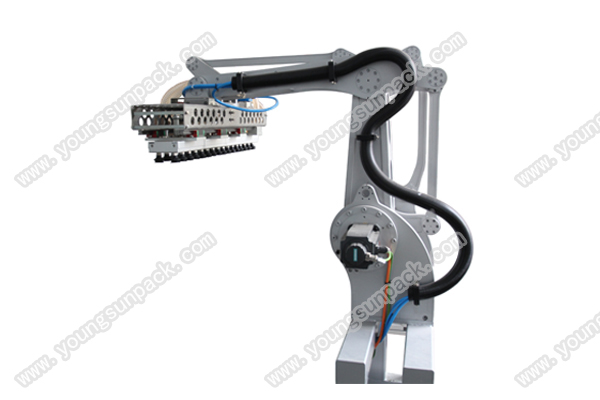

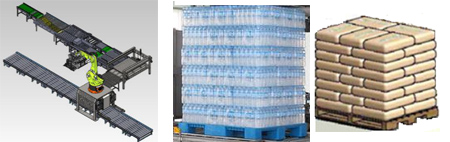

YSR-2-120-F
Series Multi-axls Industry Robot
Model YSR-2-60-F
Rated payload 120kg
Power supply 6.2KW
Reach 3150mm
Number of axes 2
Mounting position Floor
Weight of robot ≤600KG
Pose repeatability ±0.5mm
Floor area 700*700mm
Axis data A2+90°至-40°
A3+15°至-115°
Max speed A2 125°/s
A3 125°/s
imges
Inquiry this product

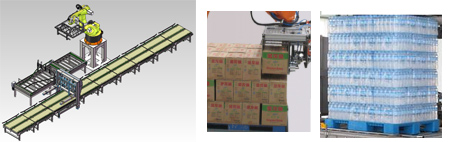

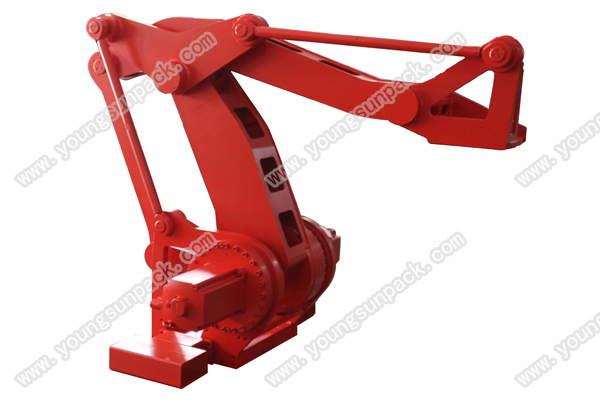

YSR-2-220-F
Series Multi-axls Industry Robot
Model YSR-2-220-F
Rated payload 220kg
Power supply 8.6KW
Reach 3150mm
Number of axes 2
Mounting position Floor
Weight of robot ≤800KG
Pose repeatability ±0.5mm
Floor area 700*700mm
Axis data A2+90°至-40°
A3+15°至-115°
Max speed A2 95°/s
A3 95°/s
imges
Inquiry this product

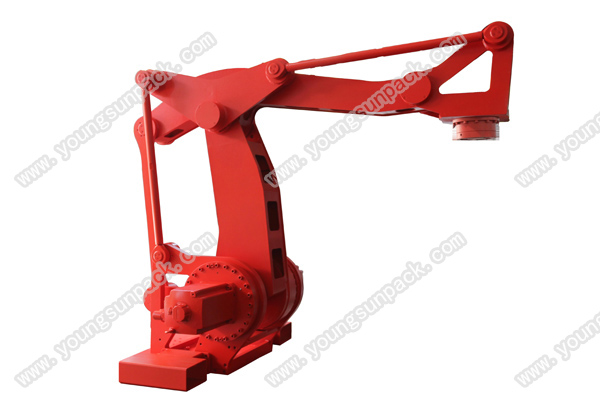

YSR-2-600-F
Series Multi-axls Industry Robot
Model YSR-2-600-F
Rated payload 600kg
Power supply 15.4KW
Reach 3150mm
Number of axes 2
Mounting position Floor
Weight of robot ≤1400KG
Pose repeatability ±0.5mm
Floor area 700*700mm
Axis data A2+90°至-40°
A3+15°至-115°
Max speed A2 65°/s
A3 65°/s
imges
Inquiry this product

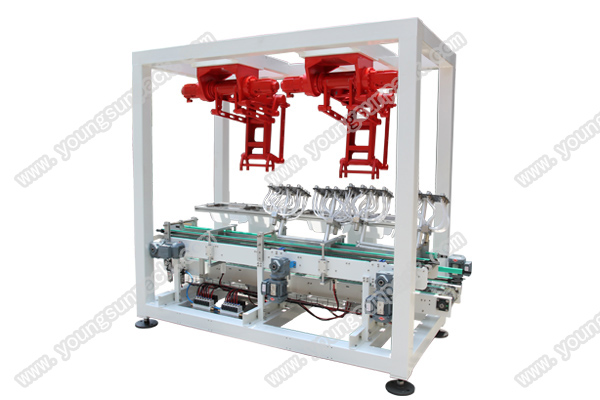

YSR-2-20-C
Series Multi-axls Industry Robot
Model YSR-2-20-C
Rated payload ≤20kg
Power supply 3.8KW
Reach 1105mm
Number of axes 2
Mounting position Ceiling
Weight of robot 155KG
Pose repeatability ±0.5mm
Floor area 320*440mm
Axis data A2-10°至+95°
A3-50°至+50°
Max speed A2 65°/s
A3 65°/s
Inquiry this product

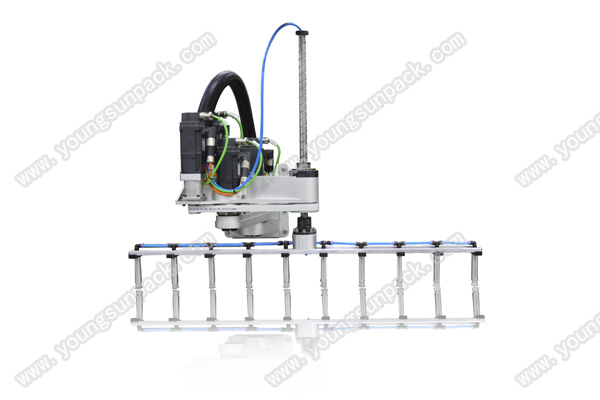

YSRC-4-10-W
Series Multi-axls Industry Robot
Model YSRC-4-10-W
Rated payload ≤10kg
Power supply 3KW
Reach 600mm,800mm
Number of axes 4
Mounting position Ceiling
Weight of robot 50KG
Pose repeatability ±0.5mm
Floor area 230*300mm
Axis data A1 ±180°
A2 ±150°
A3 400mm
A4 ±500°
Max speed A1 225°/s
A2 225°/s
A3 170°/s
A4 180°/s
imges
Inquiry this product
YSRD-4-03-C

Series Delta Robot

Model YSRD-4-03-C
Delta delta type
Power supply 2.9kw
Degree of freedom 4(Rotational axis optional)
Weight 60Kg
Working volume(optional) Φ800X250mm
Φ1130X300mm
Φ1350X350mm
Rotational axis(optional) ±360°
Maximum payload 1Kg
Maximum speed 160p/min
Pose repeatability ±0.3mm

Angle repeatablity

±0.3°
Cycle time 0.5s
Cycle path 25X305X25
Payload 0.5Kg
imges
Inquiry this product

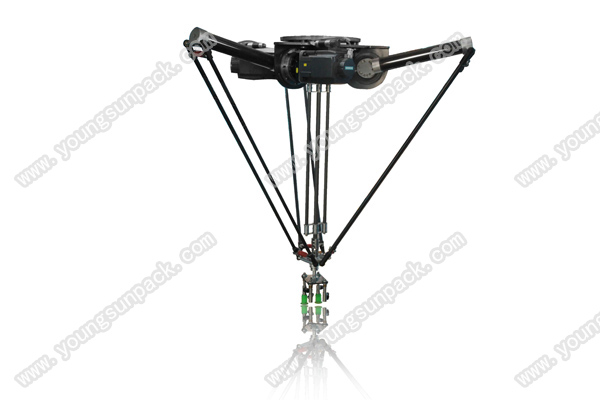

YSRD-4-01-C

Series Delta Robot

Model YSRD-4-01-C
Delta delta type
Power supply 2.9kw
Degree of freedom 4(Rotational axis optional)
Weight 60Kg
Working volume(optional) Φ800X250mm
Φ1130X300mm
Φ1350X350mm
Rotational axis(optional) ±360°
Maximum payload 1Kg
Maximum speed 160p/min
Pose repeatability ±0.3mm

Angle repeatablity

±0.3°
Cycle time 0.5s
Cycle path 25X305X25
Payload 0.5Kg
imges
Inquiry this product

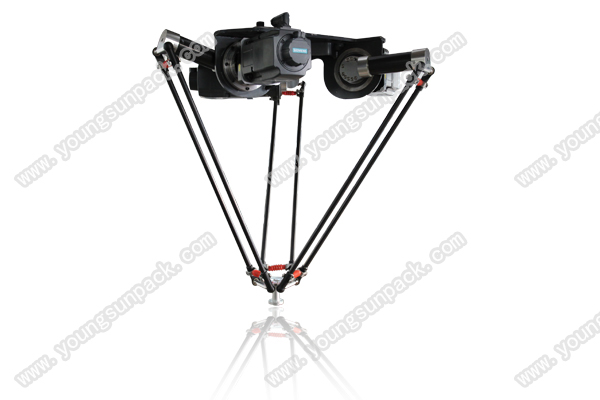

YSRD-3-01-C

Series Delta Robot

Model YSRD-3-01-C
Delta delta type
Power supply 2.4kw
Degree of freedom 3
Weight 52Kg
Working volume(optional) Φ800X250mm
Φ1130X300mm
Φ1350X350mm
Rotational axis(optional) ±360°
Maximum payload 1Kg
Maximum speed 160p/min
Pose repeatability ±0.3mm
Cycle time 0.5s
Cycle path 25X305X25
Payload 0.5Kg
imges
Inquiry this product
YSRD-3-03-C

Series Delta Robot

Model YSRD-3-03-C
Delta delta type
Power supply 4.5kw
Degree of freedom 3
Weight 72Kg
Working volume(optional) Φ800X250mm
Φ1130X300mm
Φ1350X350mm
Rotational axis(optional) ±360°
Maximum payload 3Kg
Maximum speed 160p/min
Pose repeatability ±0.3mm

Angle repeatablity

±0.3°
Cycle time 0.6s
Cycle path 25X305X25
Payload 1Kg
imges
