Shrink wrap machines apply heat to shrink a plastic film around a product. This process is often done by automated equipment, but manual and semi-automatic shrink wrap machines are also available. Shrink wrap machines cover the item, and then sent it through a heat tunnel or oven for shrinking. They are used to wrap many different types of packaging, including aerosol containers, bags or pouches, blister packs, bottles or jars, cans, capsules, cartridges, cases, cups or trays, drums or kegs, pallets, tubes, vials, and other packaging containers. Specialized and proprietary shrink wrap machines are also available for a variety of applications and industries.
Total:33products
YS-ZB-1 Auto sleeve packager shrink wrapper machine
Parameter YS-ZB-1

YS-ZJ2/4

Shrink tunnel

Standard

configuration

with 2/4 fans
Max. Speed 12packs/min 0-18m/min

Combinaton form Sealing temperature

Sealing blade width

customer made

150-180°C

650mm

Temperature

range:150-230°C

Power supply

AC380V±10%/50Hz

,2.0kw

AC380V/50Hz,

28kw

Machine Size(L*W*H)

L1290 x W1000

x H2000

L3000 x W2200

x H1530

Working height

850mm(customer made)

Machine configuration

PLC:

"Siemens"

Touch screen

:"Xinje"

Thermocouple Air switch:"CHINT"

Transducer:

"Schneider"

Motor

:"MEIWA"

Motor:"MEIWA"

Mesh chain

motor:"MEIWA"

Button,Contactor and Relay:"Schneider"

Small relay,Button

,Contactor

,Transducer

:"Schneider"

Temperature

controller:"Omron"

Proximity switch

and photoelectricity switch:“SICK”

Axial motor:0.1KW

2800R/min 250FZY6-D

Cylinder and

pneumatic

components

:"Airtac/SMC"

Inquiry this product
YS-ZB-2 Auto sleeve packager shrink wrapper machine
Parameter YS-ZB-2 YS-ZJ2/4 Shrink tunnel
Standard configuration with 2/4 fans
Max. Speed 15packs/min 0-18m/min

Combinaton form Sealing temperature

Sealing blade width

customer made

150-180°C

650mm

Temperature

range:150-230°C

Power supply

AC380V±10%/50Hz

,2.0kw

AC380V/50Hz

,28kw

Machine Size(L*W*H)

L1500 x W9200

x H2000mm

L3000 x W2200

x H1530mm

Working height 750mm
Machine configuration

PLC:

"Siemens"

Touch screen:

"Xinje"

Thermocouple Air switch:"CHINT"

Transducer:

"Schneider"

Motor:

"MEIWA"

Motor

:"MEIWA"

Mesh chain

motor:"MEIWA"

Button,Contactor and Relay:"Schneider"

Small relay,Button,

Contactor

,Transducer

:"Schneider"

Temperature

controller:"Omron"

Proximity switch and photoelectricity switch:“SICK”

Axial motor:0.1KW

2800R/min 250FZY6-D

Cylinder and pneumatic components:"Airtac/SMC"
Inquiry this product
Auto sleeve packager shrink wrapper machine YS-ZB-3
Parameter YS-ZB-3

YS-ZJ1/2

Shrink tunnel

Standard configuration with 1/2 fans
Max. Speed 6×4 10packs/min 0-18m/min
3×4 12packs/min

Combinaton form Sealing temperature

Sealing blade width

customer made

150-180°C

650mm

Tunnel size

:L2000×W1500

×H330mm

Temperature range

:150-230°C

Power supply

AC380V±10%/50Hz

,3kw(3P 5wires)

AC380V/50Hz

,28kw

Machine Size(L*W*H)

L1200 x W1500

x H1950mm

L3000 x W2200

x H1530mm

Working height 850mm
Machine configuration

PLC:

"Siemens"

Touch screen

:"Xinje"

Thermocouple

Air switch

:"CHINT"

Transducer:

"Schneider"

Motor

:"MEIWA"

Motor:"MEIWA"

Mesh chain

motor

:"MEIWA"

Button,Contactor

and Relay:

"Schneider"

Small relay

,Button Contactor

,Transducer:

"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch:“SICK”

Axial motor

:0.1KW 2800R/min

250FZY6-D

Cylinder and

pneumatic

components

:"Airtac/SMC"

Inquiry this product
YS-ZB-4 Shrink Wrapping Machine
Parameter YS-ZB-4
Max. Speed 6-12packs/min
Combinaton form Cuff semi-enclosed or fully enclosed
Sealing temperature 150℃~180℃
Air pressure 0.5-0.8MPA
Power supply AC380V±10%/50Hz, 5kW (3P 5wires)
Machine Size(L*W*H)

L1200 x W1500

x H1950mm

Noise ≤75DB
Work environment humidity≤98%, temperature-10℃~40℃
Machine configuration PLC:"Siemens" Touch screen:"xinje"
Servo Motors/driver:”Siemens” Motor:"MEIWA"
Button,Contactor and Relay:"Schneider" Cylinder and pneumatic components: "Airtac/SMC" Transducer:"Schneider"
Proximity switch and photoelectricity switch:"SICK"
Inquiry this product
YS-ZB-4C Shrink Wrapping Machine
Parameter YS-ZB-4C

YS-ZJ-04-I

Shorter shrink tunnel



Direct-delivery film structure L3.5m
Max. Speed 250ml 4×6 30packs/min 0-18m/min
500ml 3×4 25packs/min
1L 2×3 20packs/min

Combinaton form Bottle capacity

Bottle dimension

2×3 3×4 (customer made )

0.25~5L

Dia.45~120Height 90~350mm

Tunnel mesh

belt size:

710mm w

Tunnel size

:L2300×W1360

×H990mm

Temperature

control scope

:≤5°C

Working height 1150±50mm
Machine configuration

PLC:

"Siemens"

Touch screen

:"Xinje"

Thermocouple

Air switch

:"CHINT"

Transducer:

"Schneider"

Motor

:"MEIWA"

Motor:"MEIWA"

Mesh chain

motor

:"MEIWA"

Button,Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch:“SICK”

Cirulation fan,cooling

system

fan:2-4 fans

Cylinder and

pneumatic

components

:"Airtac"

Axial motor

:0.1KW 2800R/min

250FZY6-D

Optional Color film
Inquiry this product
YS-ZB-4C-1A Pad Shrink Wrapping Machine
Parameter YS-ZB-4C-1A

YS-ZJ-04-I Shorter

Shrink tunnel

Direct-delivery film structure L3.5m
Speed

250ml

4×6 30packs/min 0-18m/min
500ml 3×4 25packs/min
1L 2×3 20packs/min

Combination form

Bottle capacity

Bottle dimension

2×3 3×4 (customer made)

0.25~5L

Dia.45~120Height 90~350mm

Tunnel mesh

belt size:

710mm w

Tunne size:

L2300

×W1360×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

9.7kW (3P 5wires)

AC380V±10%/50

Hz, 70.5kW

(1.5kw 44 tubes)

Machine Size

L7530xW1670

xH2508 mm

L3550xW1570

xH2400 mm

Working height 1150+50mm
Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x5

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch:“SICK”

Cirulation fan,cooling

system

fan:2-4 fans

Cylinder and

pneumatic

components

:"Airtac"

Axial motor

:0.1KW 2800R/min

250FZY6-D

Inquiry this product
YS-ZB-5B Shrink Wrapper The continuous-sealing wrappers
Techical ParametersYS-ZB-5B

TUNNEL

(FT-4525)

Power supply 3P 380V 50/60hz 4kw 380v 3p,6.5kw
Overall machine dimensions W 1400 x L 2000 x H 1300mm W 1000 x L 1800x H 1320mm
Working plate height(on stand)

850mm±50mm(customer made)

Machine weight

N.W 770kg

G.W 810kg

N.W 560kg

G.W 610KG

Maximum sealing dimensions L∞mm x W 400mm \
Maximum product height 150mm \
Minimum film width 200mm \
Maximum film width 500mm \
Compressed air pressure 5-6kg/cm2 \
Speed 40-45psc/min 0-18m/min
Electrical configuration Intermediate relay:"Schneider"/"Omron" Contactor:"Scheider" Button switch:"Scheider"
Temperature controller:"MEIWA" Time relay:"MEIWA" Motor:"MEIWA"
Pneumatic element:"Airtac"
*notes:Technical data subject to variations without prior notice Output depends on the operator and type of the package
Inquiry this product
YS-ZB-5AY Shrink Wrapper Machine L type full automatic
Techical Parameters YS-ZB-5AY Shrink Tunnel (RS-5)
Power supply 220V.1P,3KW 380V? 3P,?6.5kw
Overall machine dimensions

W850mm×L1800MM×

H1600mm

W850mm×L1600MM×

H1500mm

Working plate height

780mm±50mm(customer made)

Tunnel entrance dimensions \ 550mm*220mm
Tunnel length \ 1100mm
Machine weight N.W 465kg N.W 250kg
G.W 500kg G.W 290kg
Maximum sealing dimensions W450mm×L550mm \
Minimum sealing dimensions W90mm×L90mm \
Maximum product height

150mm

Minimum film width

200mm

Maximum film width

500mm

Compressed air pressure

6bar

Speed25pcs/min0-12m/min
Electrical configuration Intermediate relay:"Schneider"/"Omron" Contactor:"Scheider" Button switch:"Scheider"
Temperature controller:"MEIWA" Time relay:"MEIWA" Motor:"MEIWA"
Pneumatic element:"Airtac"

Packing objects

Packing objectst

  • Minimum sealing dimensions;(A×B×C)90mm×90mm×10mm
  • Maximum sealing dimensions;(A×B×C)550mm×450mm×150mm
  • Maximum product;L500mm×W400mm×H120mm;W+H≤450
  • Biggest annotations;B+C must not more than 500mm
  • Largest size cannot be used? A×B×C to do the packing
Inquiry this product

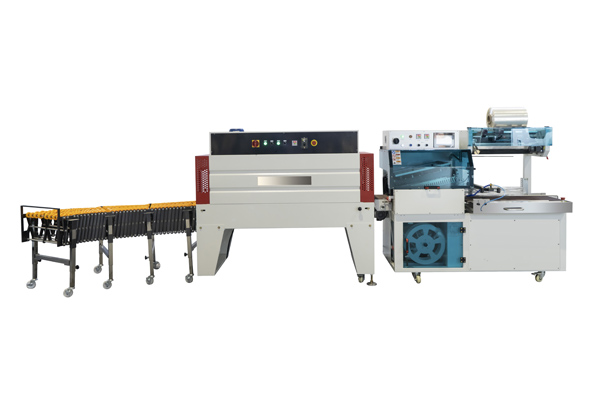

YS-ZB-5AX Shrink Wrapper Machine (L Type Full Automatic)
Model Wrapper machine (YS-ZB-5AX) Shrink Tunnel (FT4020)
Power supply 220V/50Hz 6A 3KW 380V/50Hz 32A 7kw
Compressed air 0.5NI/cycle 6 Bar
Packing speed 0-35 package/min
Convey speed 25m/min
Box range L130~500*W70~350*H100mm Entrance size of Tunnel W400mm*H200mm
Working plate height 780mm(customer made)
Sealing knife material Stainless steel,spray Teflon;
Sealing temperature 180-230℃(Sealing time<1.5s/cycle)
Film size calculation

Film width=w+H+120 (Max.550mm) when box H>80mm;

Film width=w+H+100 (Max.550mm) when box H<80mm

Film parameters

Material: POF for PE film

Max roller DIA:300mm, thickness;0.015-0.019㎜

Film lateral contraction ratio;60%

Film vertical contraction ratio;60%

Machine dimensions L1800×W810×H1530(mm) L1500×W800×H1500(mm)
Machine weight 420kg 150kg
Electrical configuration

PLC;YOUNGSUN Touch screen: YOUNGSUN

Button switch; P+F

Temperature controller; Tai wan “Gongbao”

Intermediate relay; France “Schneider”

Pneumatic element; Tai wan “AirTAC”

Motor; “Gold vader”

Optional: Conveyor belt

chain roller conveyor belt

Fiber mesh belt Stainless steel mesh belt etc.

Inquiry this product

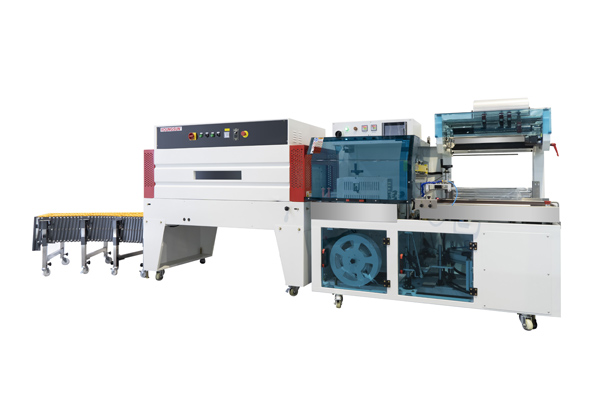

YS-ZB-5AB Shrink Wrapper Machine (Side Sealing Automatic)
Model Shrink wrapper machine (YS-ZB-5AB) Shrink Tunnel (FT4020)
Power supply 220V/50Hz 6A 3KW 1P 380V/50Hz 32A 7kw
Compressed air 0.5 MPa~0.7MPa
Packing speed 0-35 package /min
Convey speed 25m/min
Box range L50~∞*W50-370*H5-140mm Entrance size of Tunnel W400mm*H200mm
Working plate height 800mm (customer made)
Sealing knife material Stainless steel,spray Teflon;
Sealing temperature 180-230℃(Sealing time<1s/cycle)
Film size calculation Film?width=W+H+120?(Max.550mm)?when?box?H>80mm Film?width=W+H+100(Max.550mm)??when?box?H<80mm
Film parameters

Material: POF for PE film

Max roller DIA:300mm, thickness;0.015-0.019㎜

Film lateral contraction ratio;60%

Film vertical contraction ratio;60%

Machine dimensions L1800×W1000×H1520mm L1500mm*W800mm*H1500mm
Machine weight 500kg 150kg
Electrical configuration

PLC Controller:YOUNGSUN Touch screen”YOUNGSUN

Contactor:France“Schneider”

Proximity switch:“P+F”

Motor:China“MEIWA”

Cylinder;Airtac

Time relay:France“Schneider”

Micro switch; Sick

Temperature controller; GONGBAO

Optional: Conveyor belt chain roller conveyor belt、Fiber mesh belt、Stainless steel mesh belt etc.
Inquiry this product

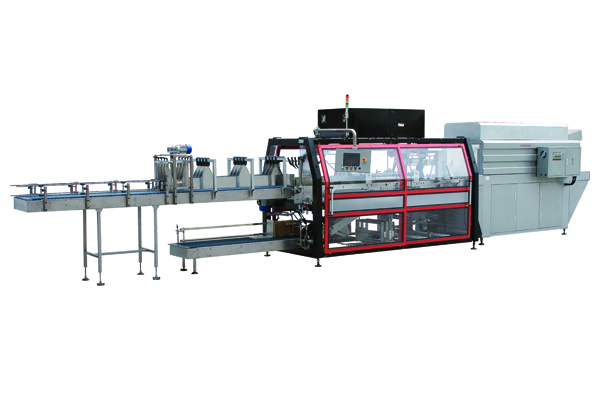

YS-ZB-6I Shrink Wrapping Machine With One Lane
Standard configuration
Parameter YS-ZB-6I

YS-ZJ-06-IL

Shrink tunnel

Direct-delivery film structure L4.5m
Speed 250ml 4×6

50

packs/min

0-18m/min
500ml 3×4

<50

packs/min

1L 2×3

<45

packs/min

Combination form

Bottle capacity

Bottle dimension

2×3 3×4(customer made)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

710mm w

Tunnel size:

L3000

×W1360×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

10.66kW (3P 5wires)

AC380V±10%/50

Hz, 91.5kW

(1.5kw 56 tubes)

Machine Size L8800xW1670xH2508 mm

L4550xW1570

xH2400 mm

Working height 1150+50mm
Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x6

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch:“SICK”

Cirulation fan,cooling

system

fan:2-4 fans

Cylinder and

pneumatic

components

:"SMC"

Axial motor

:0.1KW 2800R/min

250FZY6-D

Inquiry this product
YS-ZB-6I Shrink Wrapping Machine With One Lane
Parameter YS-ZB-6I

YS-ZJ-06-IH Longer

Shrink tunnel

Longer shrink machine L6.5m
Speed 250ml 4×6

60

packs/min

0-18m/min
500ml 3×4

50

packs/min

1L 2×3

45

packs/min

Combination form

Bottle capacity

Bottle dimension

2×3 3×4(customer made)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

1050mm w

Tunnel size:

L5000

×W1560×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

10.66kW (3P 5wires)

AC380V±10%/50

Hz, 140kW

(1.5kw 88 tubes)

Machine Size L8800xW1670xH2508 mm

L6550xW1770

xH2400 mm

Working height 1150+50mm
Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x6

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch:“SICK”

Cirulation fan,cooling

system

fan:4 fans

Cylinder and

pneumatic

components

:"SMC"

Axial motor

:0.1KW 2800R/min

250FZY6-D

Inquiry this product
YS-ZB-6I Shrink Wrapping Machine With One Lane
Parameter YS-ZB-6I

YS-ZJ-06-IL Longer

Shrink tunnel

Pre-delivery film structure(Swirl air pump) L4.5m
Speed 250ml 4×6

60

packs/min

0-18m/min
500ml 3×4

50

packs/min

1L 2×3

45

packs/min

Combination form

Bottle capacity

Bottle dimension

2×3 3×4(customer made)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

710mm w

Tunnel size:

L3000

×W1360×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

10.66kW (3P 5wires)

AC380V±10%/50

Hz, 91.5kW

(1.5kw 56tubes)

Machine Size L8800xW1670xH2508 mm

L4550xW1570

xH2400 mm

Working height 1150+50mm
Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x6

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch:“SICK”

Cirulation fan,cooling

system

fan:2-4 fans

Cylinder and

pneumatic

components

:"SMC"

Axial motor

:0.1KW 2800R/min

250FZY6-D

Inquiry this product
YS-ZB-6II Shrink Wrapping Machine With Two Lane
Parameter YS-ZB-6III

YS-ZJ-06-IIH

Shrink tunnel

Direct-delivery film structure L4.5m
Speed 250ml 4×6

<100

packs/min

0-18m/min
500ml 3×4

<80

packs/min

1L 2×3

120

packs/min

Combination form

Bottle capacity

Bottle dimension

2×3 3×4(Max.8 feeding lanes)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

710mm w

Tunne size:

L3000

×W1360×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

10.66kW (3P 5wires)

AC380V±10%/50

Hz, 91.5kW

(1.5kw 56 tubes)

Machine Size L8800xW1670xH2508 mm

L4550xW1570

xH2400 mm

Working height 1150+50mm
Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x6

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch:“SICK”

Cirulation fan,cooling

system

fan:2-4 fans

Cylinder and

pneumatic

components

:"SMC"

Axial motor

:0.1KW 2800R/min

250FZY6-D

Inquiry this product
YS-ZB-6II Shrink Wrapping Machine With Two Lane
Parameter YS-ZB-6II

YS-ZJ-06-IIH

Shrink tunnel

Longer shrink machine L6.5m
Speed 500ml 2×3

100

packs/min

0-18m/min
1L 2×3

80

packs/min

330ml 2×3

130

packs/min

Combination form

Bottle capacity

Bottle dimension

2×3 3×4(customer made)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

1050mm w

Tunne size:

L5000

×W1560×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

10.66kW (3P 5wires)

AC380V±10%/50

Hz, 140kW

(1.5kw 88 tubes)

Machine Size L8800xW1670xH2508 mm

L6550xW1770

xH2400 mm

Working height 1150+50mm
Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x6

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch:“SICK”

Cirulation fan,cooling

system

fan:4 fans

Cylinder and

pneumatic

components

:"SMC"

Axial motor

:0.1KW 2800R/min

250FZY6-D

Inquiry this product
YS-ZB-6II Shrink Wrapping Machine With Two Lane
Parameter YS-ZB-6III

YS-ZJ-06-IIH

Shrink tunnel

Direct-delivery film structure L4.5m
Speed 500ml 3×3

100

packs/min

0-18m/min
1L 2×3

80

packs/min

330ml 2×3

130

packs/min

Combination form

Bottle capacity

Bottle dimension

2×3 3×4(Max.8 feeding lanes)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

710mm w

Tunne size:

L3000

×W1360×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

15.32kW (3P 5wires)

AC380V±10%/50

Hz, 91.5kW

(1.5kw 56 tubes)

Machine Size L8800xW1670xH2508 mm

L4550xW1570

xH2400 mm

Working height 1150+50mm
Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x6

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch:“SICK”

Cirulation fan,cooling

system

fan:2-4 fans

Cylinder and

pneumatic

components

:"SMC"

Axial motor

:0.1KW 2800R/min

250FZY6-D

Inquiry this product
YS-ZB-6I(ZX) Shrink Wrapping Machine With Two Lane
Parameter YS-ZB-6I(zx)

YS-ZJ-06-IIH

Shrink tunnel

Direct-delivery film structure L4.5m
Speed

45 packs/min

0-18m/min

Combination form

Bottle capacity

Bottle dimension

2×3 3×4 4×6 (customer made)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

710mm w

Tunne size:

L3000

×W1360×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

8.06kW (3P 5wires)

AC380V±10%/50

Hz, 91.5kW

(1.5kw 56 tubes)

Machine Size

L4360xW1670

xH2508 mm

L4550xW1570

xH2400 mm

Working height 1150+50mm
Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x4

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch:“SICK”

Cirulation fan,cooling

system

fan:4 fans

Cylinder and

pneumatic

components

:"SMC"

Axial motor

:0.1KW 2800R/min

250FZY6-D

Inquiry this product
YS-ZB-6IA Pad Shrink Wrapping Machine With One Lane
Parameter YS-ZB-6IA

YS-ZJ-06-IL

Shrink tunnel

Direct-delivery film structure L4.5m
Speed

500ml

3×3 45 packs/min 0-18m/min
500ml 3×4 40 packs/min
1L 2×3 35 packs/min

Combination form

Bottle capacity

Bottle dimension

3×3 3×4 4×6 (customer made)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

710mm w

Tunne size:

L3000

×W1360×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

11.06kW (3P 5wires)

AC380V±10%/50

Hz, 91.5kW

(1.5kw 56 tubes)

Machine Size

L8800xW1670

xH2508 mm

L4550xW1570

xH2400 mm

Working height 1150+50mm
Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x6

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch:“SICK”

Cirulation fan,cooling

system

fan:2-4 fans

Cylinder and

pneumatic

components:“SMC”

Axial motor

:0.1KW 2800R/min

250FZY6-D

Inquiry this product
YS-ZB-6IIA Pad Shrink Wrapping Machine With Two Lanes
Parameter YS-ZB-6IIA

YS-ZJ-06-IIL

Shrink tunnel

Direct-delivery film structure L4.5m
Speed

500ml

4×3 80 packs/min 0-18m/min
500ml 3×3 90 packs/min
1L 2×3 70 packs/min

Combination form

Bottle capacity

Bottle dimension

3×3 3×4 (max.8 feeding lanes)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

710mm w

Tunne size:

L3000

×W1360×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

11.96kW (3P 5wires)

AC380V/50

Hz, 91.5kW

(1.5kw 56 tubes)

Machine Size

L8800xW1770

xH2508 mm

L4550xW1570

xH2400 mm

Working height 1150+50mm
Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x6

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch:“SICK”

Cirulation fan,cooling

system

fan:2-4 fans

Cylinder and

pneumatic

components:“SMC”

Axial motor

:0.1KW 2800R/min

250FZY6-D

Inquiry this product
YS-ZB-6IB Tray Shrink Wrapping Machine
Parameter YS-ZB-6IIB

YS-ZJ-06-IIL

Shrink tunnel

Direct-delivery film structure L4.5m
Speed

45 packs/min

0-18m/min

Combination form

Bottle capacity

Bottle dimension

2×3 3×4 4×6(max.8 feeding lanes)

0.25~5L

Dia.50~120Height 90~300mm

Tunnel mesh

belt size:

710mm w

Tunne size:

L3000

×W1360×

H990mm

Temerature

control

scope≤5°C

Power supply

AC380V±10%/50Hz,

19.4kW (3P 5wires)

AC380V/50

Hz, 91.5kW

(1.5kw 56 tubes)

Machine Size

L11290xW1670

xH2508 mm

L4550xW1570

xH2400 mm

Working height 1150+50mm
Machine configuration

PLC:

"Siemens"

Touch

screen

:"Siemens"

PLC:

"Siemens"

Air switch

:"CHINT"

ServoMotor

/driver:

"Schneiders"

x6

Motor:

"Nord"/"

MEIWA"

Motor:"MEIWA"

Mesh chain motor:

’Nord“/

”MEIWA“

Button,

Contactor

and Relay:

"Schneider"

Transducer:

"Schneider"

/Danfoes

Relay

,Button Contactor:

:"Schneider"

Temperature

controller

:"Omron"

Proximity switch

and photoelectricity

switch:“SICK”

Cirulation fan,cooling

system

fan:2-4 fans

Cylinder and

pneumatic

components:“SMC”

Axial motor

:0.1KW 2800R/min

250FZY6-D

Inquiry this product

YS-ZX-10T Shrink Wrapper
zoom Click



YS-ZX-10T+MH-ZB-2 Tray Cardboard Wrappping Machine
Parameter ZX-10T
Packing speed 13pcs/min
Protection level

electric appliance cabinet IP54 / pushbutton IP65 / low voltage

electric element IP67

Working height 1150 mm(customer order)
Machine size

L5571mmxW1512mmx H1700mm

Power supply 3P AC380V±10% 50HZ 9.52KW
Hot melt system 4KW NORDSON
Electrical configuration PLC:Siemens Touchscreen:‘YOUNGSUN“ PLC:Siemens
Servo motor:"Siemens" Motor:"SEW"/'MEIWA'

Contactor,electrical relay,

disconnector,

transducer,pushbutton

:Schneider

Entrance plate

chain:LILAI

Reducer:SITI

Proximity switch

and photoelectricity

switch:"SICK"

Cylinder and pneumatic

components:”Airtac“

/'"Festo"

Inquiry this product

YS-ZX-20T Shrink Wrapper
zoom Click



YS-ZX-20T Wrap Around Carton Box Machine
Parameter ZX-20T
Packing speed 20pcs/min
Protection level

electric appliance cabinet IP54 / pushbutton IP65 / low voltage

electric element IP67

Working height 1150 mm(customer order)
Machine size

L7550mmxW2650mmx H1900mm

Power supply 3P AC380V±10% 50HZ 9.52KW
Hot melt system 4KW NORDSON
Electrical configuration PLC:Siemens Touchscreen:‘YOUNGSUN“ PLC:Siemens
Servo motor:"Siemens" Motor:"SEW"/'MEIWA'

Contactor,electrical relay,

disconnector,

transducer,pushbutton

:Schneider

Entrance plate

chain:LILAI

Reducer:SITI

Proximity switch

and photoelectricity

switch:"SICK"

Cylinder and pneumatic

components:”Airtac“

/'"Festo"

Inquiry this product

YS-ZX-30T Shrink Wrapper
zoom Click



YS-ZX-30T Wrap Around Carton Box Machine
Parameter ZX-30T
Packing speed 24pcs/min
Protection level

electric appliance cabinet IP54 / pushbutton IP65 / low voltage

electric element IP67

Working height 1150 mm(customer order)
Machine size

L7550mmxW2650mmx H2100mm

Power supply 3P AC380V±10% 50HZ 9.52KW
Hot melt system 4KW NORDSON
Electrical configuration PLC:Siemens Touchscreen:‘YOUNGSUN“ PLC:Siemens
Servo motor:"Siemens" Motor:"SEW"/'MEIWA'

Contactor,electrical relay,

disconnector,

transducer,pushbutton

:Schneider

Entrance plate

chain:LILAI

Reducer:SITI

Proximity switch

and photoelectricity

switch:"SICK"

Cylinder and pneumatic

components:”Airtac“

/'"Festo"

Inquiry this product

YS-ZX-35TA Shrink Wrapper
zoom Click



YS-ZX-35TA Wrap Around Carton Box Machine
Parameter ZX-35TA(Without turn)
Packing speed 26pcs/min
Protection level

electric appliance cabinet IP54 / pushbutton IP65 / low voltage

electric element IP67

Working height 800 mm(customer order)
Machine size

L8782mmxW2300mmx H2100mm

Power supply 3P AC380V±10% 50HZ 19.7KW
Hot melt system 4KW NORDSON
Electrical configuration PLC:Siemens Touchscreen:‘YOUNGSUN“ PLC:Siemens
Servo motor:"Siemens" Motor:"SEW"/'MEIWA'

Contactor,electrical relay,

disconnector,

transducer,pushbutton

:Schneider

Entrance plate

chain:LILAI

Reducer:SITI

Proximity switch

and photoelectricity

switch:"SICK"

Cylinder and pneumatic

components:”Airtac“

/'"Festo"

Inquiry this product

YS-ZX-35TB Shrink Wrapper
zoom Click



YS-ZX-35TB Wrap Around Carton Box Machine
Parameter ZX-35TB(With turn)
Packing speed 26pcs/min
Protection level

electric appliance cabinet IP54 / pushbutton IP65 / low voltage

electric element IP67

Working height 800 mm(customer order)
Machine size

L11502mmxW2300mmx H2100mm

Power supply 3P AC380V±10% 50HZ 22.15KW
Hot melt system 4KW NORDSON
Electrical configuration PLC:Siemens Touchscreen:‘YOUNGSUN“ PLC:Siemens
Servo motor:"Siemens" Motor:"SEW"/'MEIWA' Turning gripper motor

Contactor,electrical relay,

disconnector,

transducer,pushbutton

:Schneider

Entrance plate

chain:XIAOQUAN

Reducer:SITI

Proximity switch

and photoelectricity

switch:"SICK"

Cylinder and pneumatic

components:”Airtac“

/'"Festo"

Inquiry this product

YS-ZX-35TS Shrink Wrapper
zoom Click



YS-ZX-35TS Wrap Around Carton Box Machine
Parameter ZX-35S
Packing speed 32pcs/min
Protection level

electric appliance cabinet IP54 / pushbutton IP65 / low voltage

electric element IP67

Working height 1200 mm(customer order)
Machine size

L9241mmxW2840mmx H2100mm

Power supply 3P AC380V±10% 50HZ 13.37KW
Hot melt system 4KW NORDSON
Electrical configuration PLC:Siemens Touchscreen:‘YOUNGSUN“ PLC:Siemens
Servo motor:"Siemens" Motor:"SEW"/'MEIWA'

Contactor,electrical relay,

disconnector,

transducer,pushbutton

:Schneider

Reducer:SITI

Entrance plate

chain:LILAI

Proximity switch

and photoelectricity

switch:"SICK"

Cylinder and pneumatic

components:”Airtac“

/'"SMC"

Inquiry this product

YS-ZB-60TA Shrink Wrapper
zoom Click



YS-ZX-60TA Wrap Around Carton Box Machine
Parameter ZX-60TA
Packing speed 60pcs/min
Protection level

electric appliance cabinet IP54 / pushbutton IP65 / low voltage

electric element IP67

Working height 1200 mm(customer order)
Machine size

L129441mmxW1790mmx H2100mm

Power supply 3P AC380V±10% 50HZ 16.02KW
Hot melt system 4KW NORDSON
Electrical configuration PLC:Siemens Touchscreen:‘Siemens“ PLC:Siemens
Servo motor:"Siemens" Motor:"SEW"/'MEIWA'

Contactor,electrical relay,

disconnector,

transducer,pushbutton

:Schneider

Entrance plate

chain:LILAI

Reducer:SITI

Proximity switch

and photoelectricity

switch:"SICK"

Cylinder and pneumatic

components:"SMC"

Inquiry this product

YS-ZX-60TB       Shrink Wrapper
zoom Click



YS-ZX-60TB Wrap Around Carton Box Machine
Parameter ZX-60TB
Packing speed 60pcs/min
Protection level

electric appliance cabinet IP54 / pushbutton IP65 / low voltage

electric element IP67

Working height 1200 mm(customer order)
Machine size

L12944mmxW1790mmx H2100mm

Power supply 3P AC380V±10% 50HZ 16.62KW
Hot melt system 4KW NORDSON
Electrical configuration PLC:Siemens Touchscreen:‘Siemens“ PLC:Siemens
Servo motor:"Siemens" Motor:"SEW"/'MEIWA'

Contactor,electrical relay,

disconnector,

transducer,pushbutton

:Schneider

Entrance plate

chain:LILAI



Reducer:SITI

Proximity switch

and photoelectricity

switch:"SICK"

Cylinder and

pneumatic

components:

"SMC"/‘Airtac'

Inquiry this product

YS-ZX-70A Shrink Wrapper
zoom Click



YS-ZX-70A Wrap Around Carton Box Machine
Parameter ZX-70A(Without handle)
Packing speed 70pcs/min
Protection level

electric appliance cabinet IP54 / pushbutton IP65 / low voltage

electric element IP67

Working height 1200 mm(customer order)
Machine size

L15035mmxW3726mmx H1200mm

Power supply 3P AC380V±10% 50HZ 28.19KW
Hot melt system 4KW NORDSON
Electrical configuration PLC:Siemens Touchscreen:‘Siemens“ PLC:Siemens
Servo motor:"Siemens" Motor:"SEW"/'MEIWA'

Contactor,electrical relay,

disconnector,

transducer,pushbutton

:Schneider

Entrance plate

chain:LILAI



Reducer:SITI

Proximity switch

and photoelectricity

switch:"SICK"

Cylinder and

pneumatic

:"SMC"

Inquiry this product

YS-ZX-70B Shrink Wrapper
zoom Click



YS-ZX-70B Wrap Around Carton Box Machine
Parameter ZX-70B(Without handle)
Packing speed 70pcs/min
Protection level

electric appliance cabinet IP54 / pushbutton IP65 / low voltage

electric element IP67

Working height 1200 mm(customer order)
Machine size

L14539mmxW3726mmx H1200mm

Power supply 3P AC380V±10% 50HZ 25.04KW
Hot melt system 4KW NORDSON
Electrical configuration PLC:Siemens Touchscreen:‘Siemens“ PLC:Siemens
Servo motor:"Siemens" Motor:"SEW"/'MEIWA'

Contactor,electrical relay,

disconnector,

transducer,pushbutton

:Schneider

Entrance plate

chain:LILAI



Reducer:"SITI"

/"FIXEDSTAR"

Proximity switch

and photoelectricity

switch:"SICK"

Cylinder and

pneumatic

components:

"SMC"/‘Airtac'

Inquiry this product
YS-ZB-3246 Semi Automatic Shrink Wrapper Machine
Semi automatic shrink wrapper machine
“one-step” system
Techical Parameters YS-ZB-3246
Power supply 1P 220V 50HZ/60HZ
Maximum power required 2.1KW
Overall machine dimensions W690 x L1120mm xH1150m
Working plate height(on stand) 920mm
Machine weight

71KG

Sealing area W320mm x L 460mm
Maximum product height 150mm
Impulse sealing system Bottom blade
Maximum roll dimensions DIA 250mm x W 470mm
Output 4-8pcs/min
Optional ①Roller conveyor ②Scrap rewinder ③Conveyor
Electrical configuration Intermediate relay:"Schneider"/"Omron" Contactor:"Scheider" Button switch:"Scheider"
Temperature controller:"MEIWA" Time relay:"MEIWA" Motor:"MEIWA"
Pneumatic element:"Airtac"
*Notes: Technical data subject to variations without prior notice Output depends on the operator and the type of the package

①Roller conveyor ②Scrap rewinder

③Conveyor belt

Inquiry this product
YS-ZB-4255 Semi Automatic Shrink Wrapper Machine
Semi automatic shrink wrapper machine
“one-step” system
Techical Parameters YS-ZB-4255
Power supply 1P 230V
Maximum power required 3.5KW
Overall machine dimensions W680 x L1370mm xH1200m
Working plate height(on stand) 920mm
Machine weight

130KG

Sealing area W420mm x L 550mm
Maximum product height 150mm
Impulse sealing system Bottom blade
Maximum roll dimensions DIA 250mm x W 600mm
Output 4-8pcs/min
Optional ①Roller conveyor ②Scrap rewinder ③Conveyor
Electrical configuration Intermediate relay:"Schneider"/"Omron" Contactor:"Scheider" Button switch:"Scheider"
Temperature controller:"MEIWA" Time relay:"MEIWA" Motor:"MEIWA"
Pneumatic element:"Airtac"
*Notes: Technical data subject to variations without prior notice Output depends on the operator and the type of the package

①Roller conveyor ②Scrap rewinder

③Conveyor belt

Inquiry this product
YS-ZB-5040A Semi Automatic Shrink Wrapper Machine
L-sealer with shrink tunnel "combo" system
Techical Parameters YS-ZB-5040A
Power supply 3P+N 230V/380V
Maximum power required 5KW
Overall machine dimensions W775 x L2200mm x H1500
Working plate height(on stand) 920mm
Tunnel entrance dimensions450 x230mm
Tunnel length 700mm
Machine weight 270kg
Sealing area W500mm x L 400mm
Maximum product height 160mm
Impulse sealing system top blade
Maximum roll width 600mm
Compressed air consumption NO
Compressed air pressure NO
Output 8-15pcs/min
Electrical configuration Intermediate relay:"Schneider"/"Omron" Contactor:"Scheider" Button switch:"Scheider"
Temperature controller:"MEIWA" Time relay:"MEIWA" Motor:"MEIWA"
Pneumatic element:"Airtac"

*Notes: Technical data subject to variations without prior notice Output depends on the operator and the type of the package

Inquiry this product
Quick Links: Packing Machine  Case Erectors  Labeling Machine  Shrink Wrapper  Carton Sealer  Strapping Machine  Strapping Tool  Palletizer  Wrapping Machine  Carton Packer  Packing line  PP Straps  LLDPE Stretch Film Conveyor   Filling and Capping Machine   Vacuum Packaging Machine  Robot  Vertical Packaging Machine
欧美亚洲片在线播放_一级毛片免费播放无卡片_欧美A理论片在线播放_亚洲婷婷综合色香五月
